Speedometer lcd display 48-72v gauge for electric scooter MTB motorcycle odometer with battery level and light icon speedview

Type Display

Brand Name phoebevpartstols

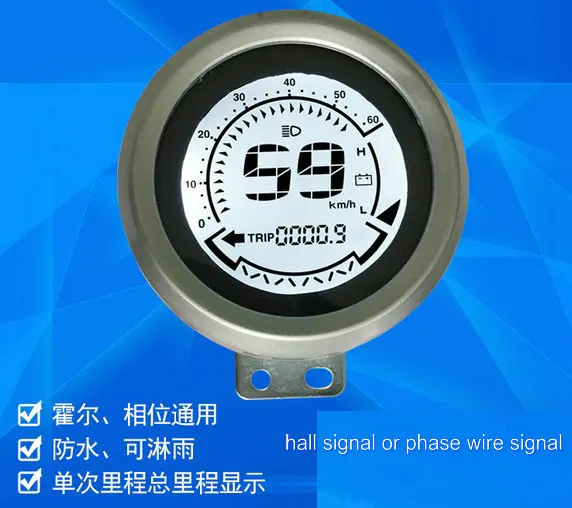

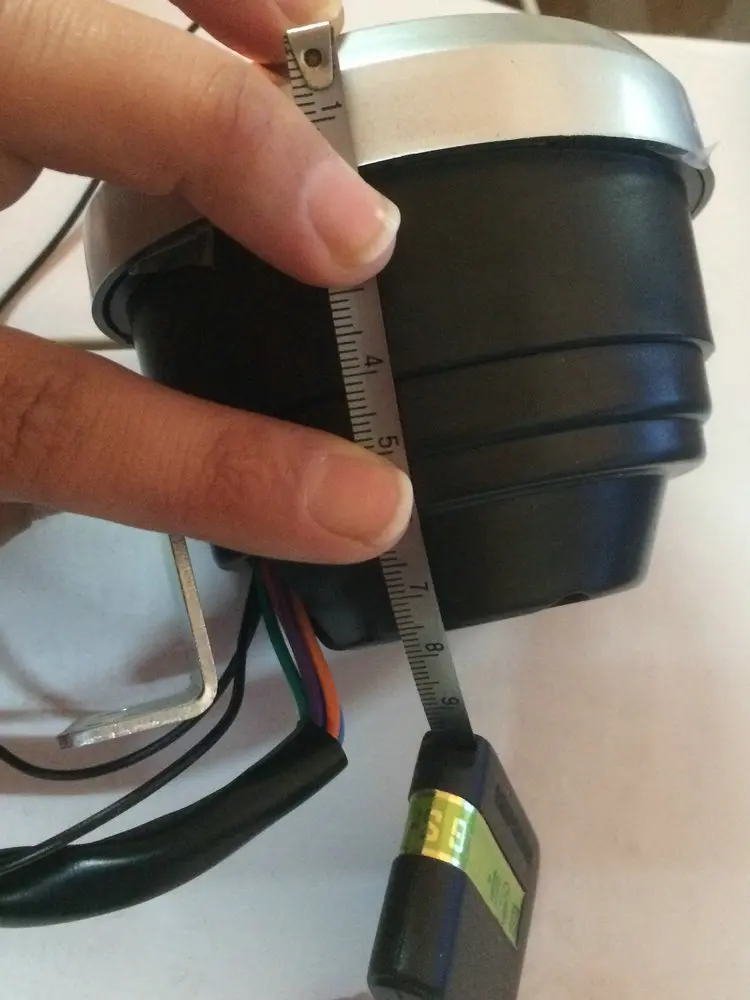

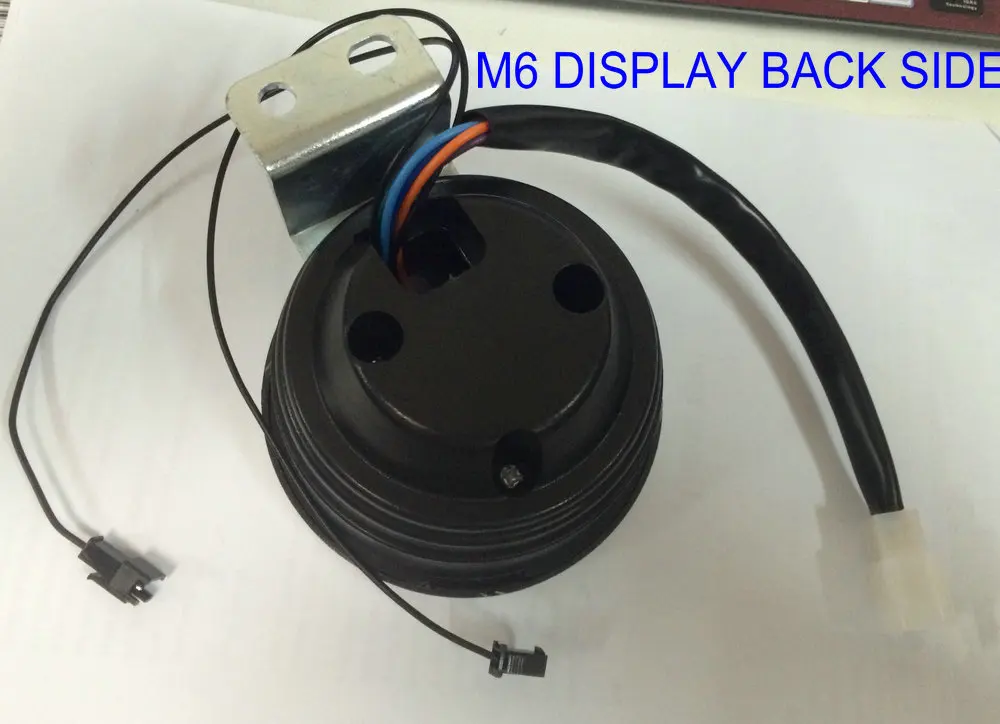

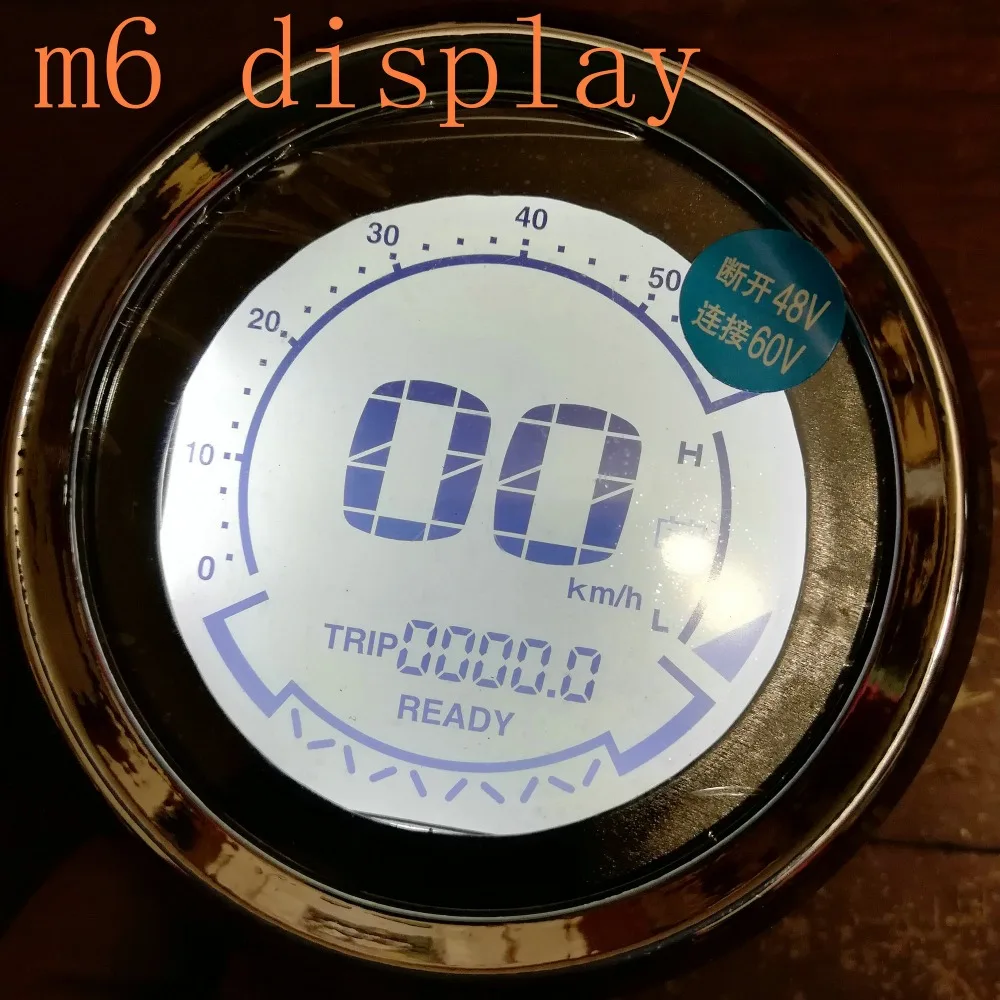

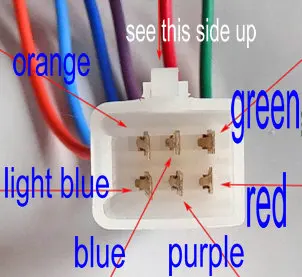

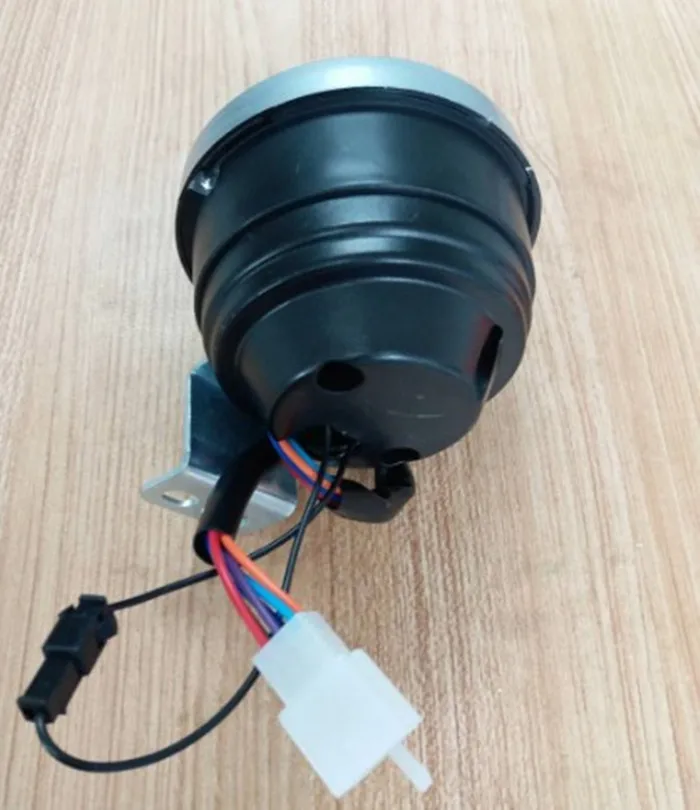

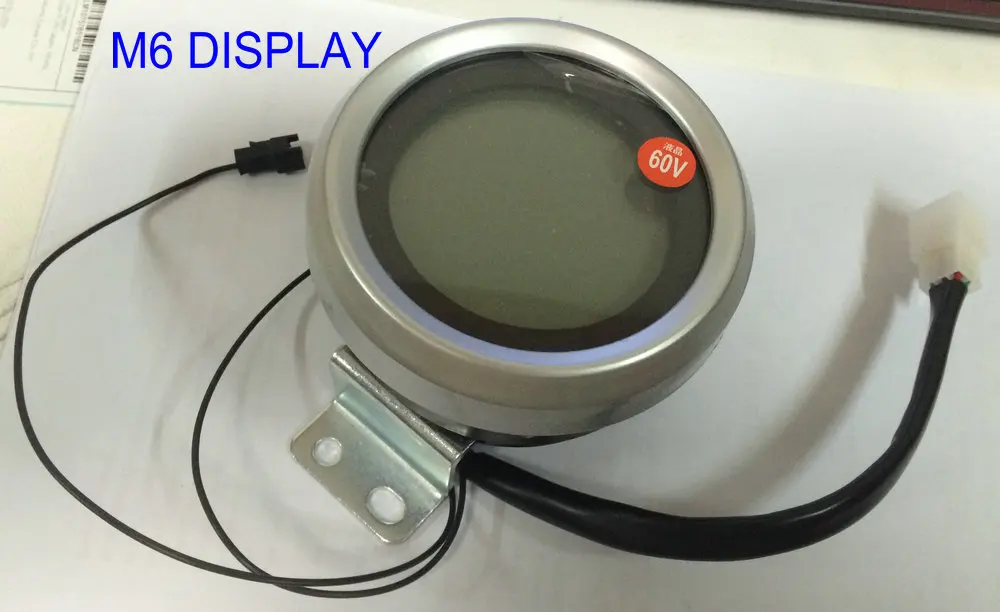

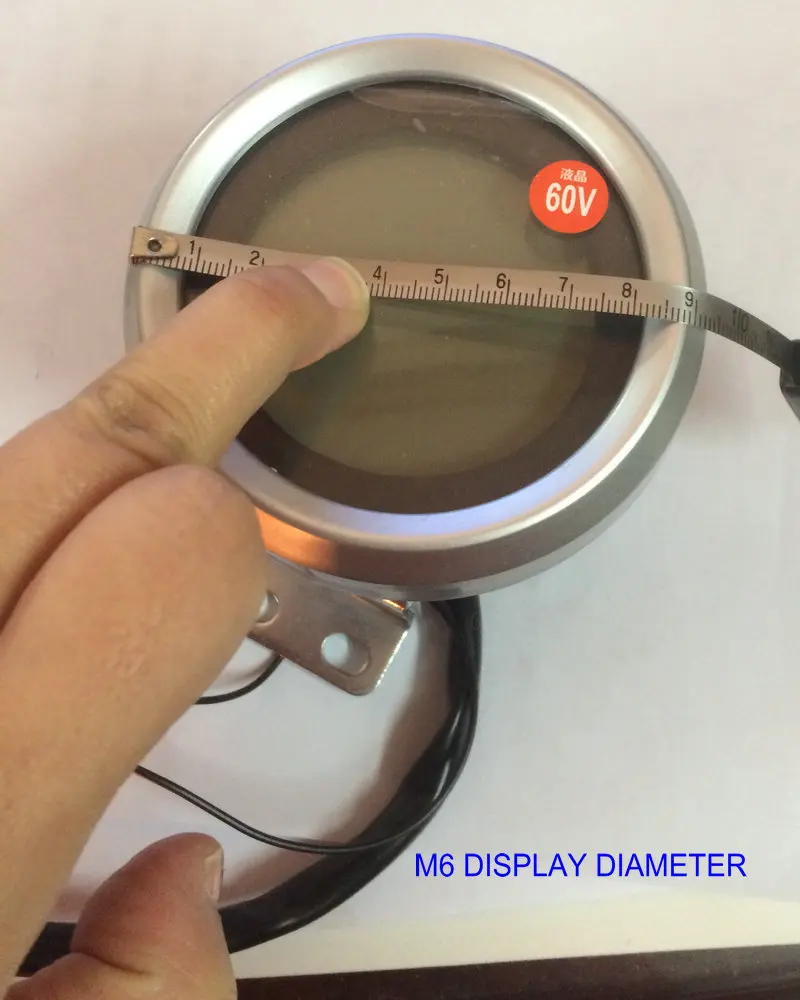

Speedometer lcd display 48-72v gauge for electric scooter MTB motorcycle odometer with battery level and light icon speedview this is lcd display for electric bike, scooter, TRICYCLE, Mountain bike, motorcyle atv and other e-vehiles. it indicates odo single trip frontlight battery level speed turning light and so on. usually for 72v, undervoltage proteciton is 62/63v for 48v , low voltage protection 41v, 60v , low voltage protection is 52v, the tolerance is +/-0.5v its shell diameter 9cm about, length 8cm about. wire length 10cm about. with a voltage choose wire in black color at back of display. default setting with install mount,. has same wiring way wirinG RED-power POSITIVE black/green-power negative blue-frontlight purple-speed , (phase speed testing. or hall sensor speed testing) orange -left turning signal light blue-right turning signal attention about wiring ; the purple speed wire--usually should connect with your controller phase wire to read phase voltage signal. (default setting this display takes phase voltage wire signal, connect the purple speed wire directly with your motor/controller phase wire, it will read speed, if especially need hall sensor wire signal please tell us in advance .we need preconnect the wire. ) THIS BELLOW THE WIRE WELD on hall sensor point, which will take hall sensor speed, but ALSO need add a resistance on 105, customer can please connect ways 1. connect speed wire of display with speed wire of your controller(as long as your controller speed wire takes phase voltage signal) 2. with your motor or controller phase wire 3. with your controller or motor hall sensor wire 4. use a speedtest sensor, connect it with speed test sensor and then connect speed sensor with your controlleR price is for sample , for customer who need it in large quantity we can talk by mail or under product in message. picture from customer BELLOW IS picture it is installed in shell. default setting we donot provide this shell
